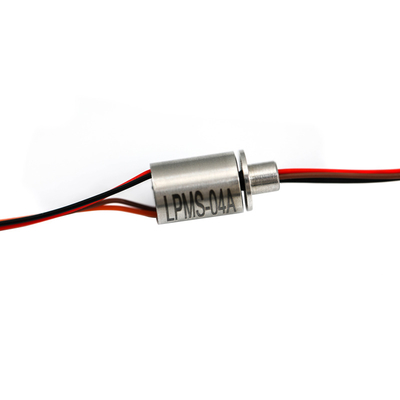

Name: Super miniature 48 VAC capsule slip ring 4 wire slip ring with light and small figure, for illumination
Brand: Super miniature 48 VAC capsule slip ring 4 wire slip ring with light and small figure, for illumination
SKU: LPMS-04A
Rating: 5 (131 reviews)

traits Galerie Description de produit Demandez une citation

traits

Caractéristiques

Model Number: LPMS-04A

Type: Electronic Accessories

Circuit Number: 4

Current Rating: 1A

Voltage: 48VAC

Working Speed: 0~100 rpm

Working Temperature: -20~+60â„ƒ

Style: Capsule slip ring

Informations de base

Model Number: LPMS-04A

Conditions de paiement et expédition

Description de produit

Bargain Price Only in Alibaba

Description

The LPMS-04A super miniature slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary part to a rotating part.

The LPMA-04A unit is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

Specification

Circuits	4
Current Rating	1A
Voltage	48 VAC
Electrical Noise	≤15mΩ
Working Speed	0~100 RPM
Contact	Precious metal
Housing	Stainless steel
Wire Size	30# silver plated copper UL, Teflon
Lead Wire Length	Rotor:250mm; Stator:250mm
Working Temperature	-20~+60℃
Protection Grade	IP54

Main Application

Electric devices
Medical facility
Industrial machinery
LED industry
Medical equipment
Process control equipment

Outline Drawing
